Duplex Steel Valve Balls
Ballking duplex steel and super duplex steel valve balls provide ultra-high strength and resistance to chloride stress corrosion cracking due to austenite-ferrite microstructure. Specialized forging and heat treatment ensure the best phase balance, making it suitable for seawater, offshore and high-pressure chlorine-containing environments (up to 250°C), and it performs exceptionally well in brine, sulfur-containing oil and gas, and acidic chloride media.
Duplex Steel Valve Ball

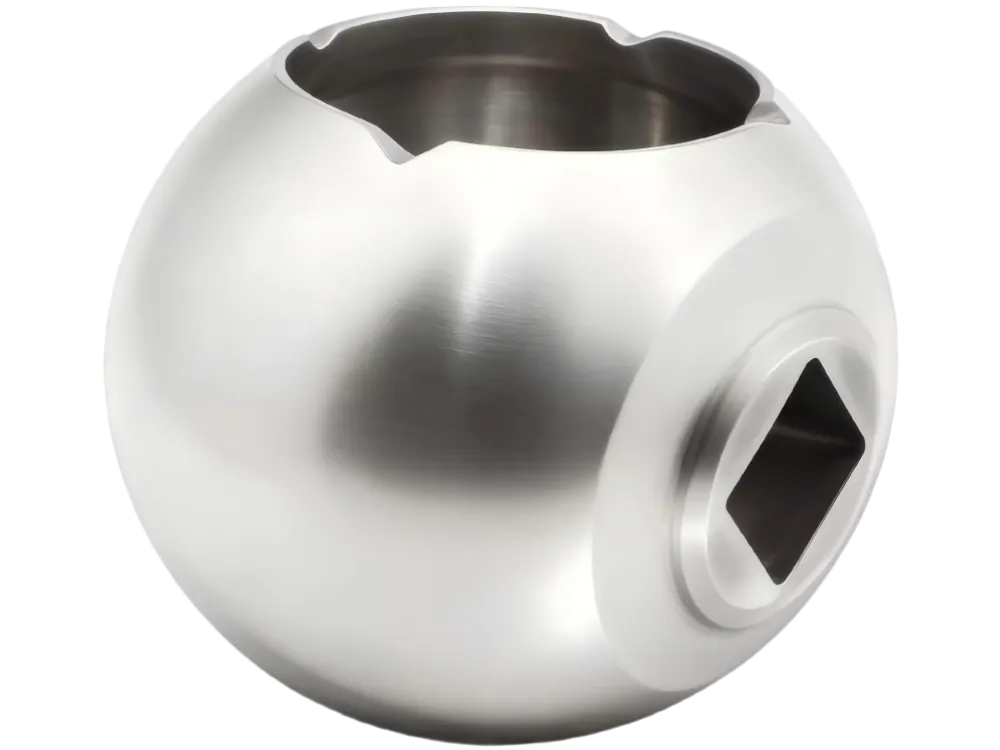

Duplex steel valve ball is manufactured from duplex stainless steel. It features dual microstructure of austenite + ferrite, combining high mechanical strength and superior corrosion resistance, specially used for severe corrosive working conditions.
Common Grades
2205 (S32205)：Standard duplex steel, widely used in general severe corrosion.
2507 (S32750)：Super duplex steel, higher corrosion resistance and strength for seawater and strong acid environment.
Duplex Steel Valve Ball
Duplex steel valve ball is manufactured from duplex stainless steel. It features dual microstructure of austenite + ferrite, combining high mechanical strength and superior corrosion resistance, specially used for severe corrosive working conditions.
Common Grades
2205 (S32205)：Standard duplex steel, widely used in general severe corrosion.
2507 (S32750)：Super duplex steel, higher corrosion resistance and strength for seawater and strong acid environment.
Detail
Manufacturing Process
Integral forging, CNC precision machining and mirror lapping. Roundness tolerance up to 0.01mm. Optional nitriding, hard chrome plating and Stellite hardfacing for high pressure metal seal application.
Key Advantages
- Excellent resistance to pitting and crevice corrosion, far better than 304 and 316L.
- Double yield strength of ordinary stainless steel, high pressure resistance and anti-deformation.
- Great resistance to stress corrosion cracking in high temperature and chloride environment.
- Good wear and erosion resistance for slurry and particle medium.
- Long service life in harsh industrial conditions.
Applications
Seawater desalination, marine engineering, offshore platform, petrochemical desulfurization, brine chemical industry, sewage treatment, high chloride pipeline, high pressure metal seat ball valve and V-port control valve.
|
Size Range |
1/2"- 56" (Custom Sizes Available) |
|
| Pressure rating |
PN10- PN420 (Class150 - 4500) |
|
| Ball Material |
F51 (S31803), F53 (S32750), F60 (S32205), etc. |
|
| Manufacturing Process | Forging | |
| Coaxiality | ≤0.01mm | |
| Roundness Accuracy |
≤0.02mm |
|
| Surface Roughness | Ra ≤ 0.4 μm | |
| Outside Diameter Tolerance | 1/2" - 4" : 0.03 mm | 6" - 12" : 0.05 mm |
| Inner Diameter Tolerance | 1/2" - 4" : 0~ 0.03 mm | 6" - 12" : 0~ 0.05 mm |
