Trunnion Ball
Trunnion Ball / Fixed Ball

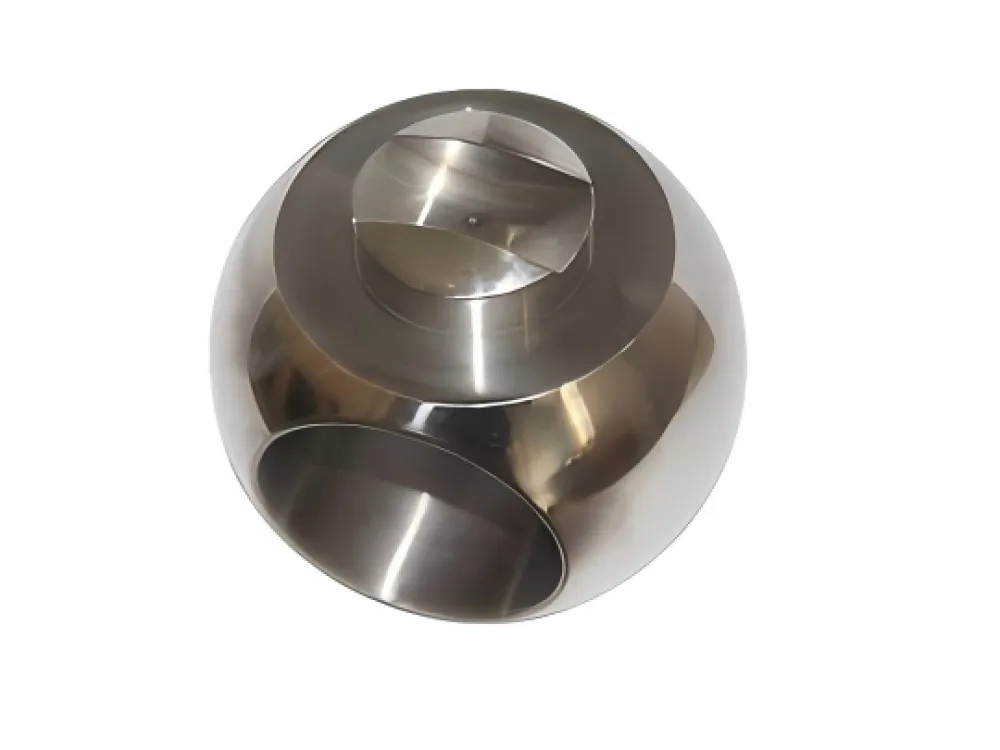

Trunnion mounted ball is also called fixed ball. It has integral top and bottom trunnion shafts, fixed in the valve body without floating. The ball only rotates in place and does not shift under medium pressure, specially designed for high pressure and large bore ball valves.
Structure Features
Integrated upper and lower trunnion shafts support the ball firmly in the valve body.
The ball rotates only without axial movement.
Sealing relies on floating seat compensation to fit the ball surface tightly.
Mostly designed as solid forged ball with high rigidity and anti-deformation performance.
Trunnion mounted ball is also called fixed ball. It has integral top and bottom trunnion shafts, fixed in the valve body without floating. The ball only rotates in place and does not shift under medium pressure, specially designed for high pressure and large bore ball valves.
Structure Features
Integrated upper and lower trunnion shafts support the ball firmly in the valve body.
The ball rotates only without axial movement.
Sealing relies on floating seat compensation to fit the ball surface tightly.
Mostly designed as solid forged ball with high rigidity and anti-deformation performance.
Detail
Material & Process
Materials: 304, 316L, 443, F6a, alloy steel, Inconel 625, duplex steel.
Manufactured by integral forging, CNC precision machining and mirror lapping. Optional nitriding, hard chrome plating and Stellite hardfacing for high temperature and wear resistance.
Key Advantages
- Excellent high pressure resistance, suitable for high class pressure rating.
- Perfect for large bore size above DN200, stable operation without shaking.
- Low operating torque, easy for manual and actuator operation.
- High rigidity and anti-deformation, long service life under high temperature and pressure.
- Reliable sealing performance with floating seat self-compensation, no leakage for long-term use.
Applications
Oil & gas long-distance pipelines, petrochemical high-pressure working conditions, power plant steam systems, marine & offshore engineering, metallurgy and large-diameter industrial pipelines.
Trunnion Ball for Ball Valve
Size: NPS 2-40 (DN50-1000)
Pressure Rating: Class 150~2500(PN16~420)Base Material: ASTM A105, A350 LF2, A182 F304, A182 F316, A182 F6A, A182 F51, A182 F53, A182 F55, A564 630(17-4PH), Monel, Inconel.
Coatings: ENP, Chrome Plating, Tungsten Carbide, Chrome Carbide, Stellite, Inconel, Special.
Support Type: Stem
Drive: key Hole
Roundness: 0.01-0.03
Roughness: Ra0.2-Ra0.4
Coaxiality: 0.05-0.10
Packaging Detail: wooden cases; pallet; containers
Used: large and medium oil, gas, water conservancy, pharmaceuticals,Chemical, heating equipment industryWe can also produce according to customer's size.
